Highsider Voyage Main Headlight
Manufacturer ID: 223-161
Out of Stock
This variant is not available right now.
Check back in a while!
Out of Stock
60-day return policy
Customer reviews (0)
0 out of 5
Based on 0 reviews
Description

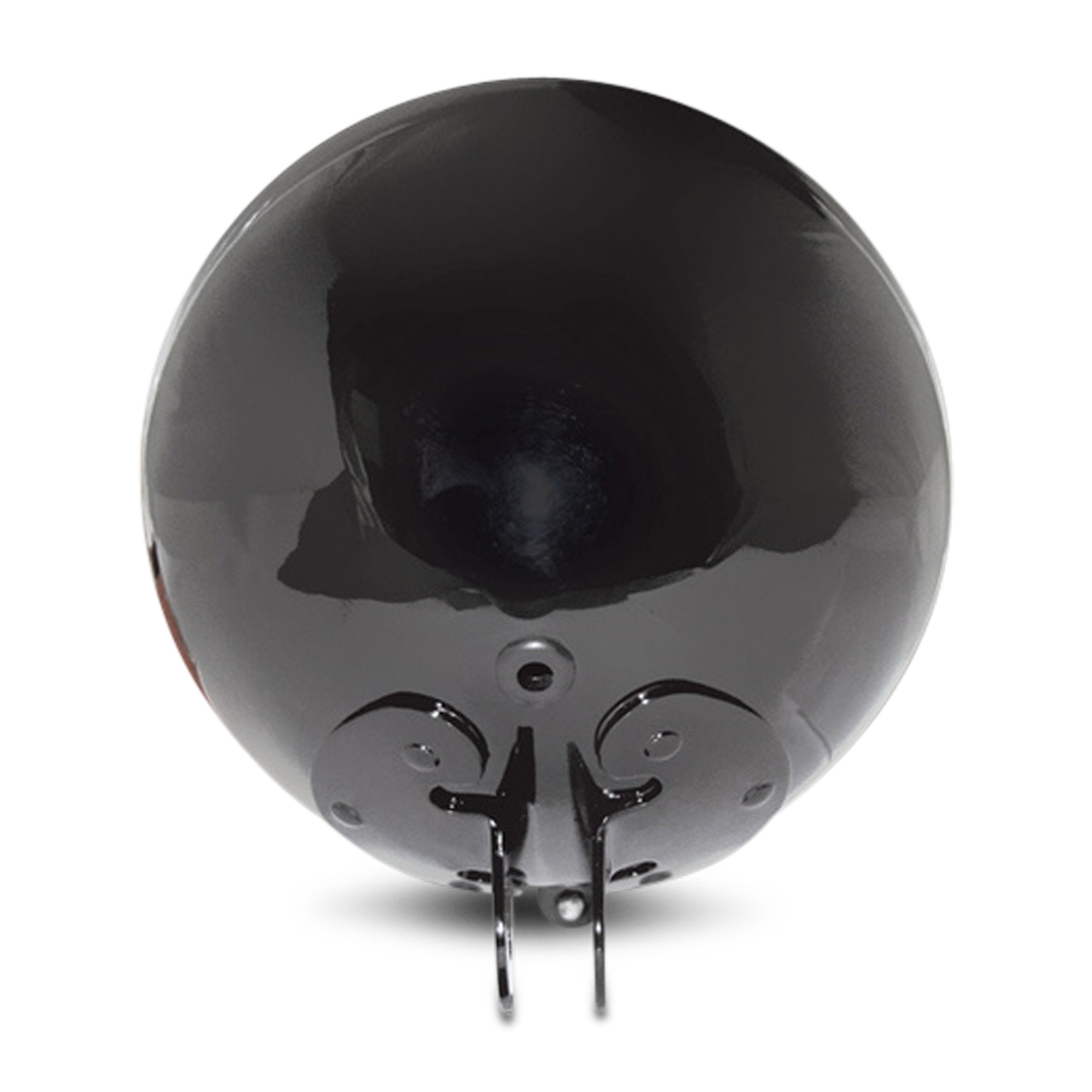

Highsider Voyage the main headlight LED 7"- bottom mounting
Stylish-innovative Power-LED headlight in a puristic design with a parking light function and round, clear glass. The oval metal housing is available in black, or chrome plated. The LED technology and the inserted reflector produce a symmetrical, bright light and provide optimal perception by other road users, E-tested.
Dimensions:
Body diameter: 205 mm
Diameter of headlight insert: 178 mm
Depth: 155 mm
Distance of mounting holes on the holder (centre-centre): 65 mm
Current consumption at 12.5 Volt:
Discharged light: 1.4 Ampere (approx. 17.5 Watt), approx. 1170 lumen.
Distant light: 1.5 Ampere (approx. 18.5 Watt), approx. 1200 lumen.
Connections, 3-pin combo plug:
Black cable = ground (-)
White cable = low beam (+)
Yellow cable = high beam (+)
Red extra cable = parking light (+)
Stylish-innovative Power-LED headlight in a puristic design with a parking light function and round, clear glass. The oval metal housing is available in black, or chrome plated. The LED technology and the inserted reflector produce a symmetrical, bright light and provide optimal perception by other road users, E-tested.
Dimensions:
Body diameter: 205 mm
Diameter of headlight insert: 178 mm
Depth: 155 mm
Distance of mounting holes on the holder (centre-centre): 65 mm
Current consumption at 12.5 Volt:
Discharged light: 1.4 Ampere (approx. 17.5 Watt), approx. 1170 lumen.
Distant light: 1.5 Ampere (approx. 18.5 Watt), approx. 1200 lumen.
Connections, 3-pin combo plug:
Black cable = ground (-)
White cable = low beam (+)
Yellow cable = high beam (+)
Red extra cable = parking light (+)
Specifications
- Weight Packaging 699
- Length Packaging 218
- Manufacturers article number 223-161
- Height Packaging 132
- Placement Front
- Width Packaging 180
