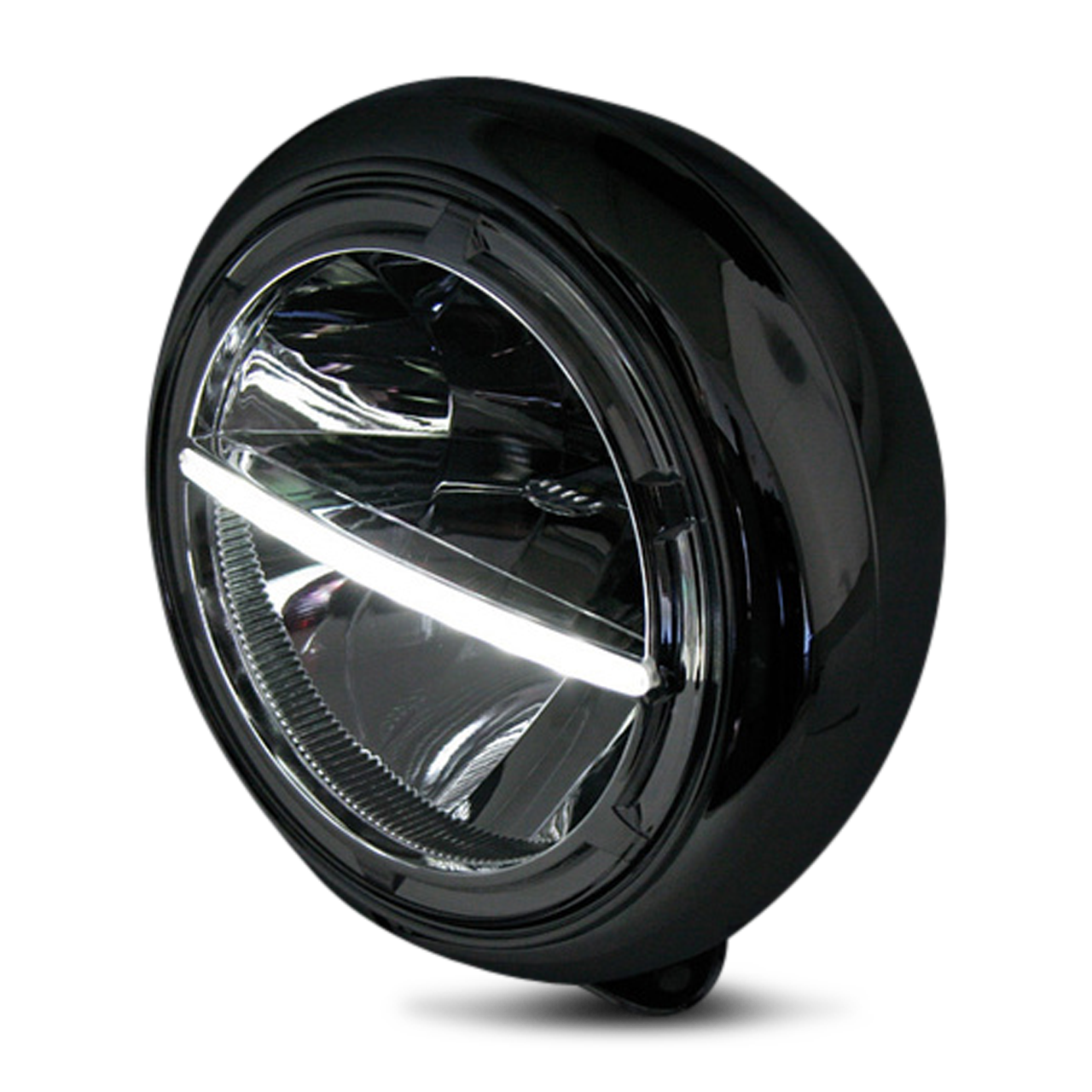

Highsider Voyage Hd-Style M-Headlight

Highsider Voyage 7-inch LED headlight VOYAGE HD-STYLE for bottom mounting Innovative power LED headlight in a purist design with parking light function.

The oval metal housing is painted black or chrome-plated, and the insert is chrome-plated. The LED technology and the used reflector produce a symmetrical, bright light and provide an optimal perception of bikers by other road users, E-examined.

Highsider’s highlights give your bike an unmistakable style! The fancy design and perfect technology of the Highsider headlight series make it a highlight!

Dimensions:
•Enclosure diameter: 220 mm
•Headlight insert diameter: 178 mm
•Depth: 155 mm
•Distance between the mounting holes on the bracket (centre-centre): 65 mm

Technical specifications:
•Power consumption at 12.5 Volt:
•Dispersion light: 1.4 Ampere (approx. 17.5 Watt), approx. 1170 lumen.
•High beam: 1.5 amperes (approx. 18.5 watts), approx. 1200 lumen.

Connectors, 3-pin combo plug:
•Black cable = Ground (-)
•White cable = Low beam (+)
•Yellow cable = High beam (+)
•Red extra cable = Parking light (+)

Supplied equipment: 1 piece

Notes:
•Symmetrical reflector - also approved for left-hand traffic.
•Replacement inserts: Art.-Product No. 1108030
