Highsider Victory-Blast Hbe-Mirror W. Ic
Manufacturer ID: 301-127
Out of Stock
This variant is not available right now.
Check back in a while!
Out of Stock
60-day return policy
Customer reviews (0)
0 out of 5
Based on 0 reviews
Description

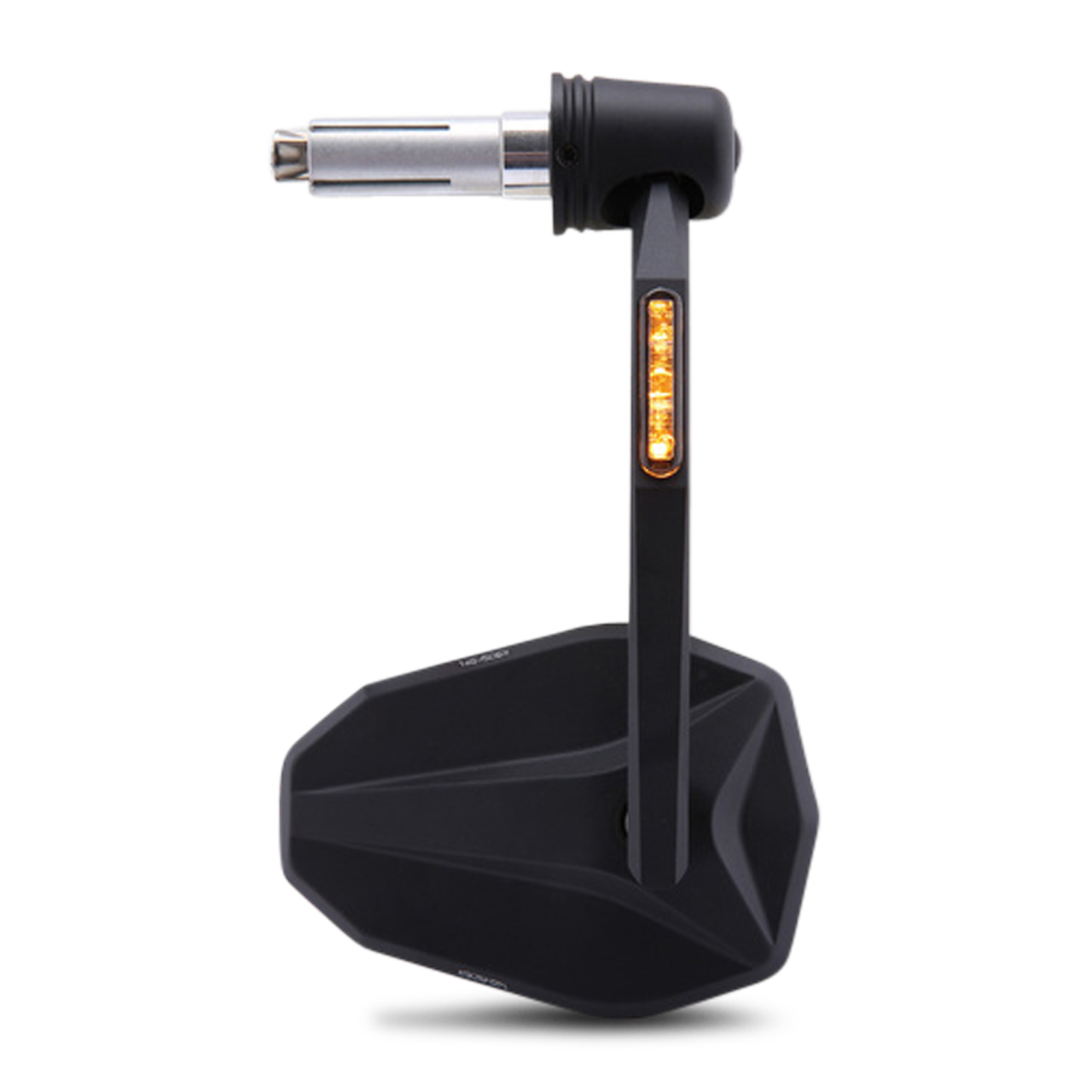

Victory-Blast Universal Handlebar End Mirror.
Made of aluminium, cut from solid and anodized black with a pearl black satin finish. It is suitable for handlebars with an inner diameter of 12 to 22 mm, i.e. for most 7/8 inch and 1 inch aluminium handlebars.
It is dual Position (Right or Left position), the mirror head can be oriented inwards or outwards. E-approved and sold individually. This mirror is only suitable for suspension mounting!
You still need to install 2 pieces, as the indicators are integrated. These replace your OLD turn signals.
Dimensions:
Mirror width (A): 117 mm
Mirror height (B): 83 mm
Width (C): 55 mm
Height (D): 190 mm
Rod length: 75 mm from head to elbow and 70 mm to rod end
Width of mirror arm: 12 mm
Cable length from end of handlebar: 900 mm
Connections:
Yellow cable = flasher (+)
Black cable = ground (-)
Power consumption: 12.5 V / 0.11 A / 1.35 W
Scope of delivery:
1 clamping sleeve each with D 12 mm and D 16 mm
1 spacer sleeve each with D. 14 mm, D. 18 mm and D. 22 mm
1 x centre screw M6
1 x conical nut M6
1 x black plastic cap
Made of aluminium, cut from solid and anodized black with a pearl black satin finish. It is suitable for handlebars with an inner diameter of 12 to 22 mm, i.e. for most 7/8 inch and 1 inch aluminium handlebars.
It is dual Position (Right or Left position), the mirror head can be oriented inwards or outwards. E-approved and sold individually. This mirror is only suitable for suspension mounting!
You still need to install 2 pieces, as the indicators are integrated. These replace your OLD turn signals.
Dimensions:
Mirror width (A): 117 mm
Mirror height (B): 83 mm
Width (C): 55 mm
Height (D): 190 mm
Rod length: 75 mm from head to elbow and 70 mm to rod end
Width of mirror arm: 12 mm
Cable length from end of handlebar: 900 mm
Connections:
Yellow cable = flasher (+)
Black cable = ground (-)
Power consumption: 12.5 V / 0.11 A / 1.35 W
Scope of delivery:
1 clamping sleeve each with D 12 mm and D 16 mm
1 spacer sleeve each with D. 14 mm, D. 18 mm and D. 22 mm
1 x centre screw M6
1 x conical nut M6
1 x black plastic cap
Specifications
- Weight Packaging 461
- Length Packaging 275
- Manufacturers article number 301-127
- Height Packaging 142
- Width Packaging 166
