Highsider Ultimate Z Main Headlight
Manufacturer ID: 223-084
Out of Stock
This variant is not available right now.
Check back in a while!
Out of Stock
60-day return policy
Customer reviews (0)
0 out of 5
Based on 0 reviews
Description

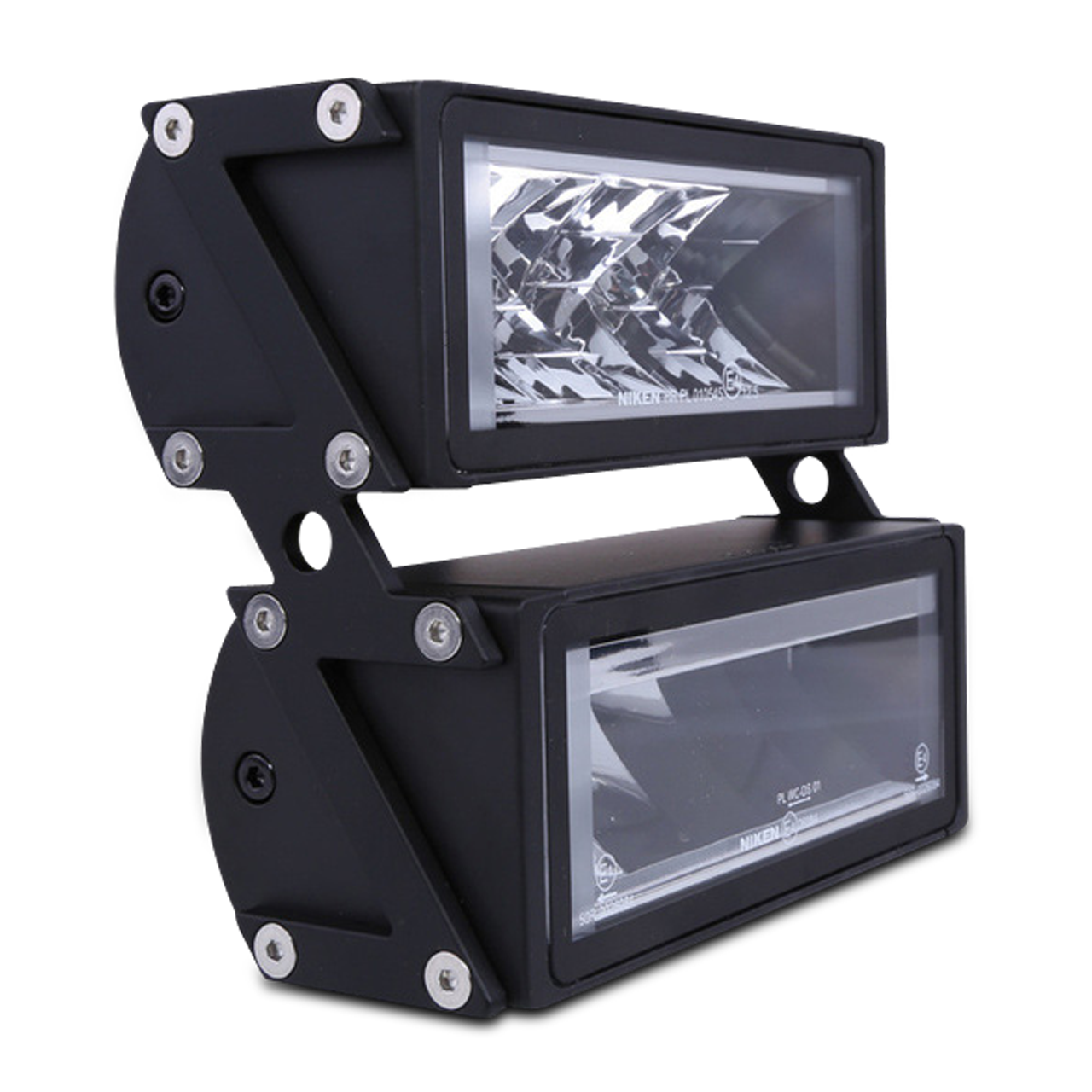

Highsider LED headlight ULTIMATE with Z-holder, black, side mounting
Combined with a holder in Z-shape, this LED headlight set consists of a high-beam and low-beam headlight with position light. There are cooling fins on the back of the aluminium housing. The clear and simple design of the headlamp set is suitable for streetfighters, cruisers and naked bikes.
Dimensions:
Width 146 mm
Depth 73 mm
Height: 124 mm
Distance of the fixing holes (middle – middle): 62 mm
Fixing: Mounting holes on the side with Ø 10 mm
Connections:
Black cable (2x) = Ground (-) Yellow cable = High beam (+) Blue cable = Low beam (+) White cable = Position light (+)
Combined with a holder in Z-shape, this LED headlight set consists of a high-beam and low-beam headlight with position light. There are cooling fins on the back of the aluminium housing. The clear and simple design of the headlamp set is suitable for streetfighters, cruisers and naked bikes.
Dimensions:
Width 146 mm
Depth 73 mm
Height: 124 mm
Distance of the fixing holes (middle – middle): 62 mm
Fixing: Mounting holes on the side with Ø 10 mm
Connections:
Black cable (2x) = Ground (-) Yellow cable = High beam (+) Blue cable = Low beam (+) White cable = Position light (+)
Specifications
- Weight Packaging 699
- Length Packaging 218
- Manufacturers article number 223-084
- Height Packaging 132
- Placement Front
- Width Packaging 180
