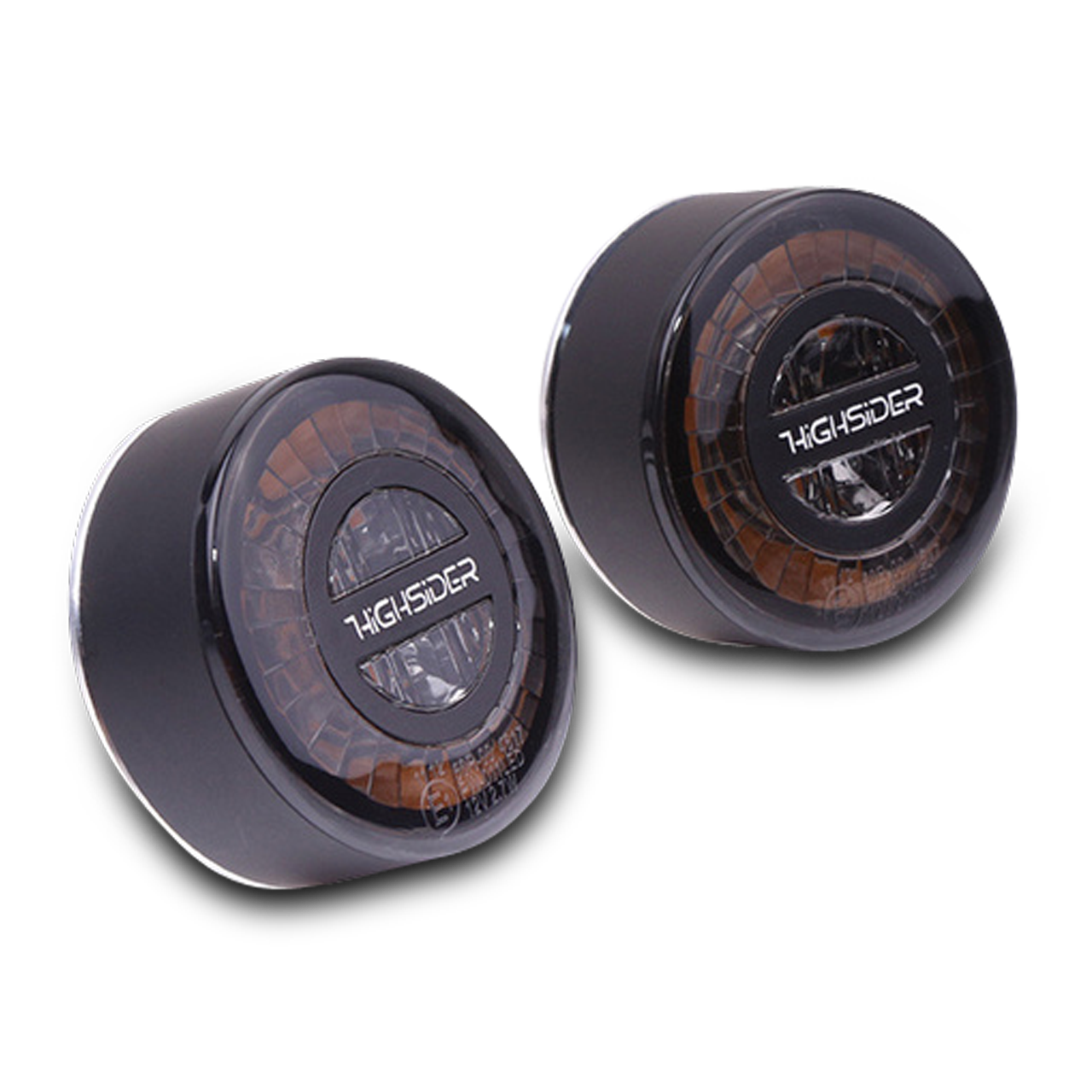

Highsider Rocket LED Indicator

Highsider Rocket LED Indicator with black aluminium ring and tinted glass. E-approved for front and rear.

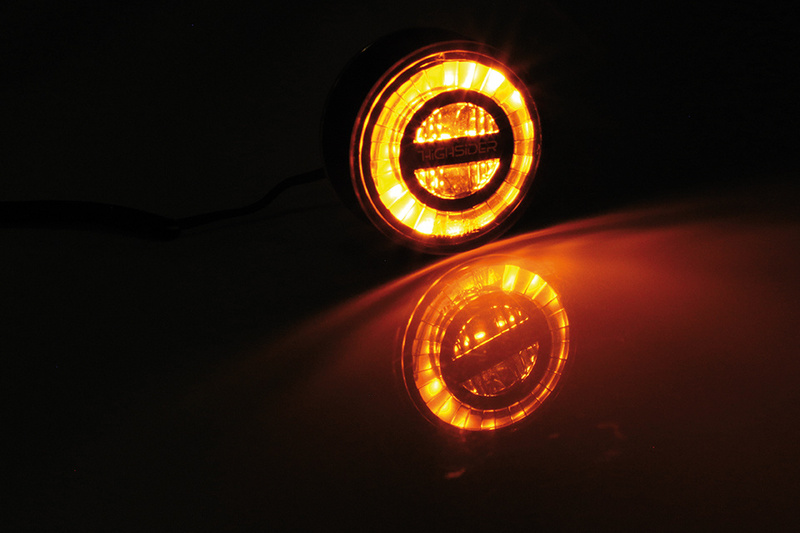

This innovative lighting technology features 6 very bright SMD LEDs in the centre which allow an extremely small design. The outer ring, on the other hand, consists of the new COB technology (Chip On Board).

The new LED chip embedding for high-performance LEDs achieves a very high luminance with the best possible efficiency and service life. In addition, higher light values can be achieved than with conventional LEDs.

Dimensions:
A1: 18 mm
A2: 15 mm
D1: 45 mm
D2: 43 mm

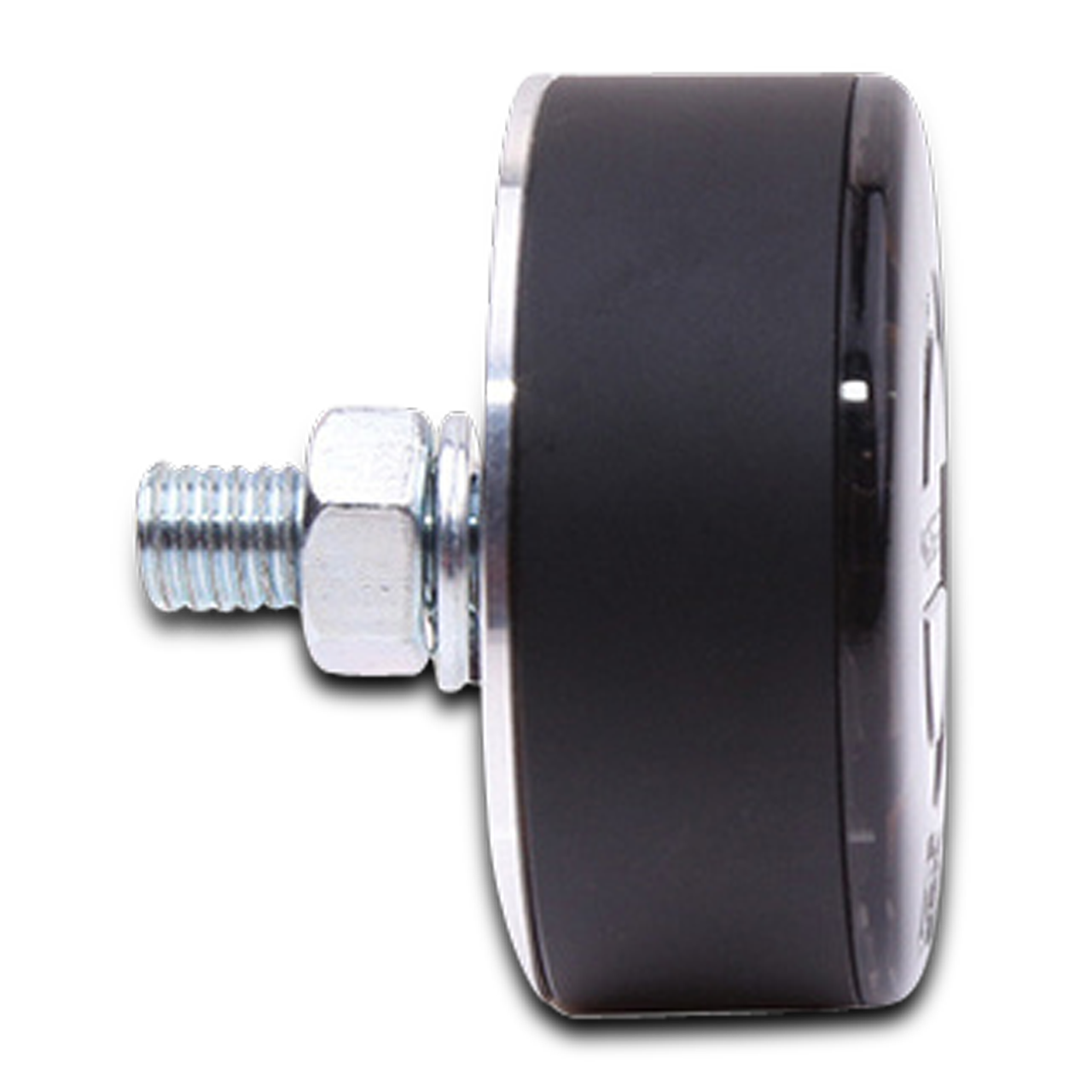

Fastening bolt: M8 x 1.25 mm, length: 18 mm

Connections:
Black cable = Ground (-) Yellow cable = Flasher (+)

Scope of supply: 1 pair

Note:
The combination can be installed flat without an aluminium ring so that only the lens is visible. A 40 mm hole must be drilled for this purpose. Alternatively, the combination with the aluminium ring can be mounted on a mounting plate on the vehicle.
