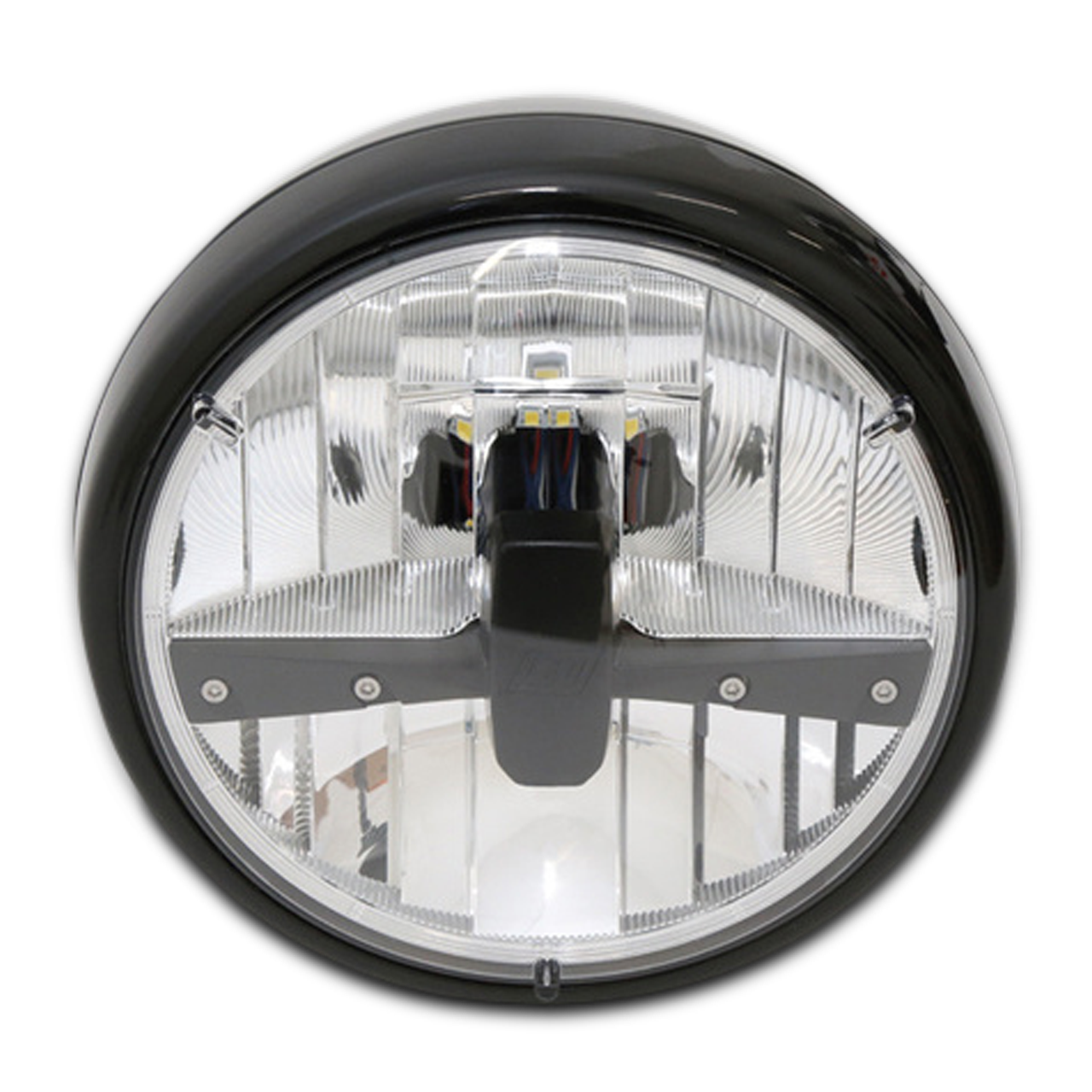

Highsider Reno Typ 3 Main Headlight

HIGHSIDER Reno Type 3 Headlight LED, 7 inch, metal housing, clear glass, side mounting, E-approved.

Innovative power LED headlight with parking light function and clear glass. The oval metal housing has a chrome-plated, asymmetrical reflector - only approved for right-hand traffic - E-approved.

Our highlights - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight every time!

Headlight dimensions:

Housing diameter: 200 mm
Headlight insert diameter: 178 mm
Housing depth: 160 mm
Distance between mounting holes (centre - centre): 170 mm
Distance of fixing hole (centre) to end of housing: approx. 90 mm
Mounting: laterally with M8 threaded bolts

Connections:

White cable = low beam (+)
Blue cable = high beam (+)
Green cable = ground (-)
Grey extra cable = LED position light (+)
Black extra cable = ground (-)

Scope of delivery:1 piece, including 3-pin mating connector

NOTE:Use asymmetrical, only approved for right-hand traffic.
