Highsider Mono LED Taillight

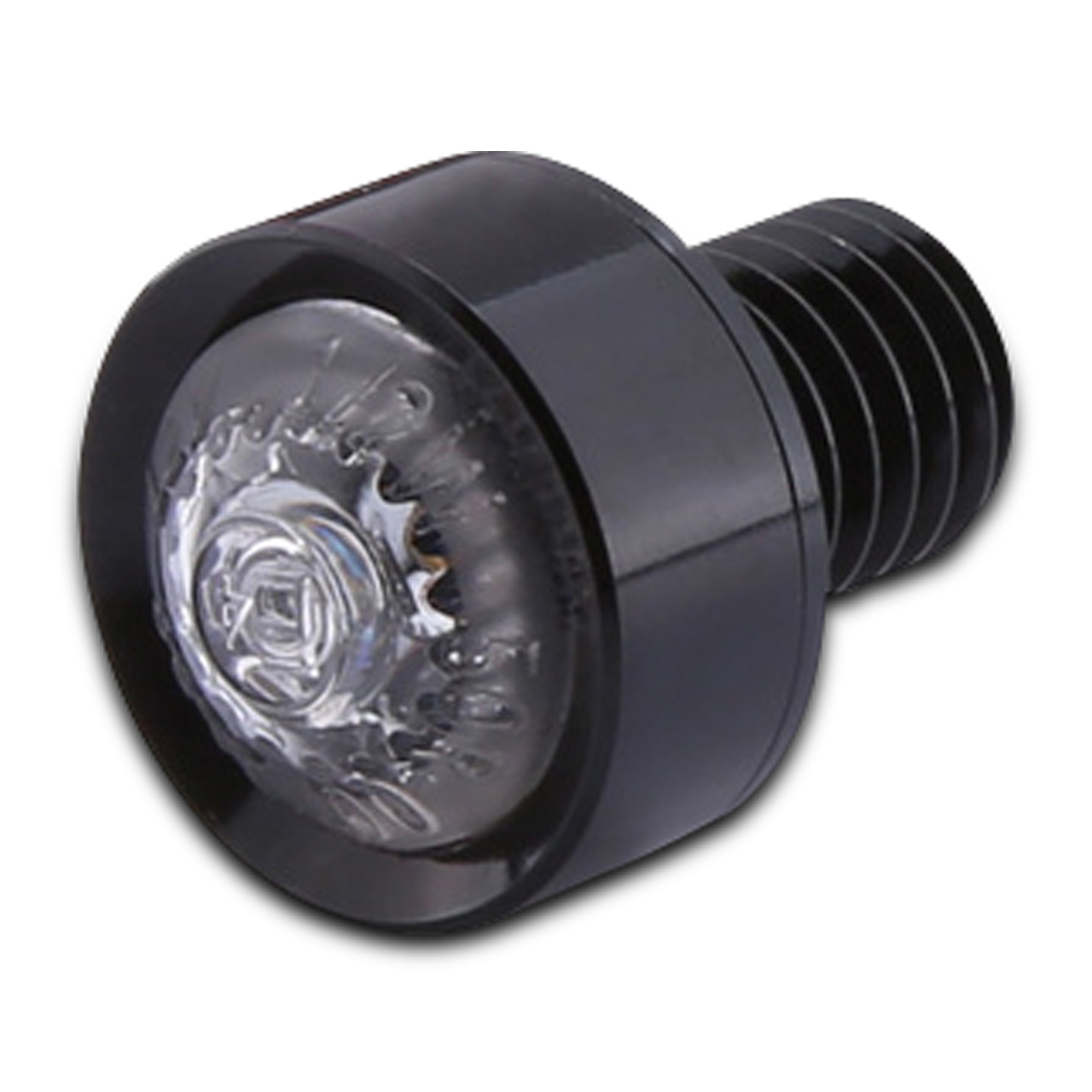

HIGHSIDER LED taillight unit MONO, clear lens, chrome plated or black, dia. 18 mm, E-marked.

Taillight with a power LED and clear glass, embedded in a round aluminum housing, E-approved.

The HIGHSIDER taillight and taillight/indicator series will be seen with certainty to give you the safety you need and the look you want whether cruiser, scooter or speedster.

Measures:
Diameter: 18 mm
Height: 8 mm
Attachment: Threaded bolt M10 x 1.5 mm,
length: 13 mm and nylon nut.

Power consumption at 12.5 volts:
Taillight = 0,02 Ampere
Brakelight = 0,13 Ampere

Connections:
Black cable = Ground (-)
Yellow cable= Taillight (+)
Red cable = Brakelight (+)

Supplied with:1 piece, housing color selectable.

Optionally available:Matching LED indicators: Part No. 1108571001 (203-215)
