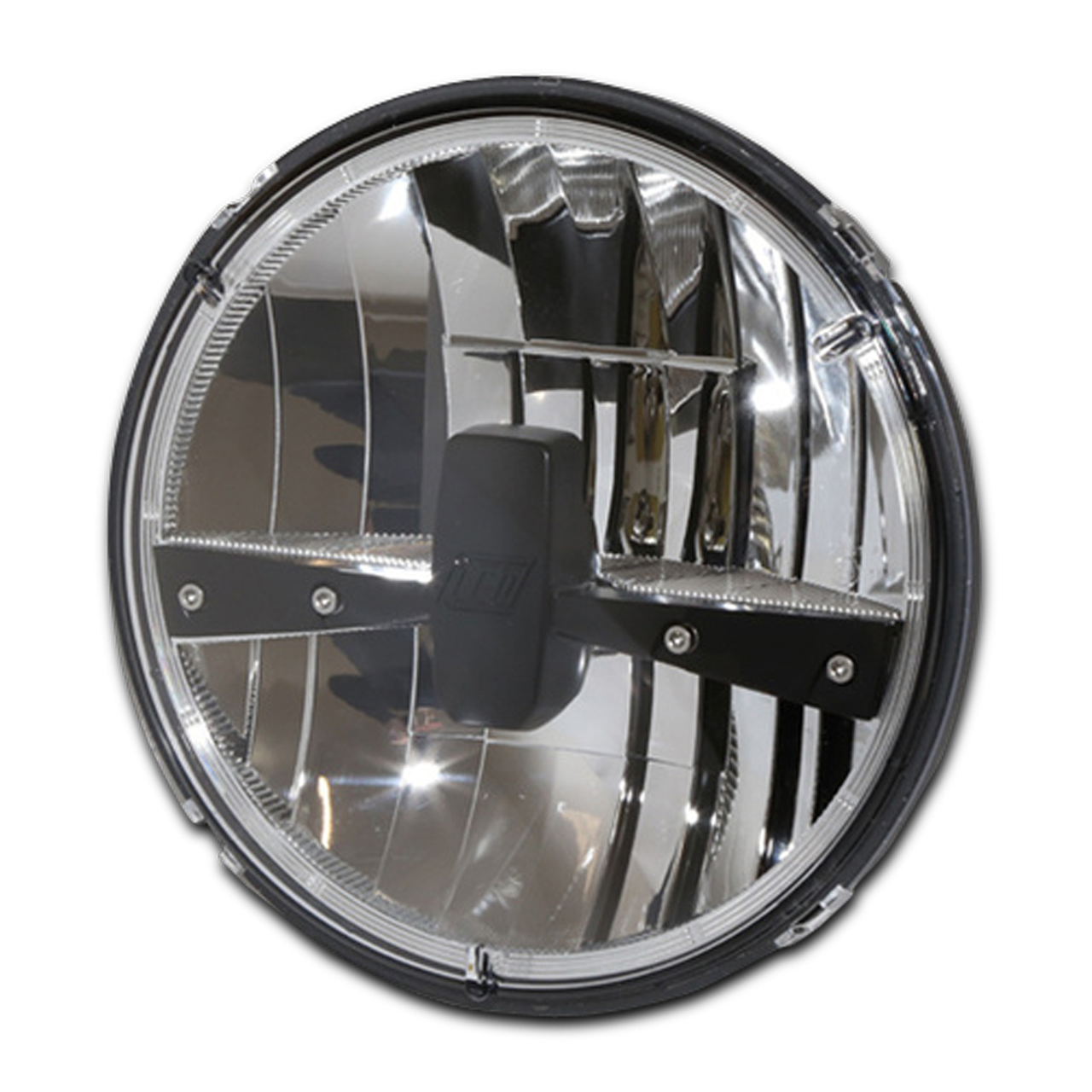

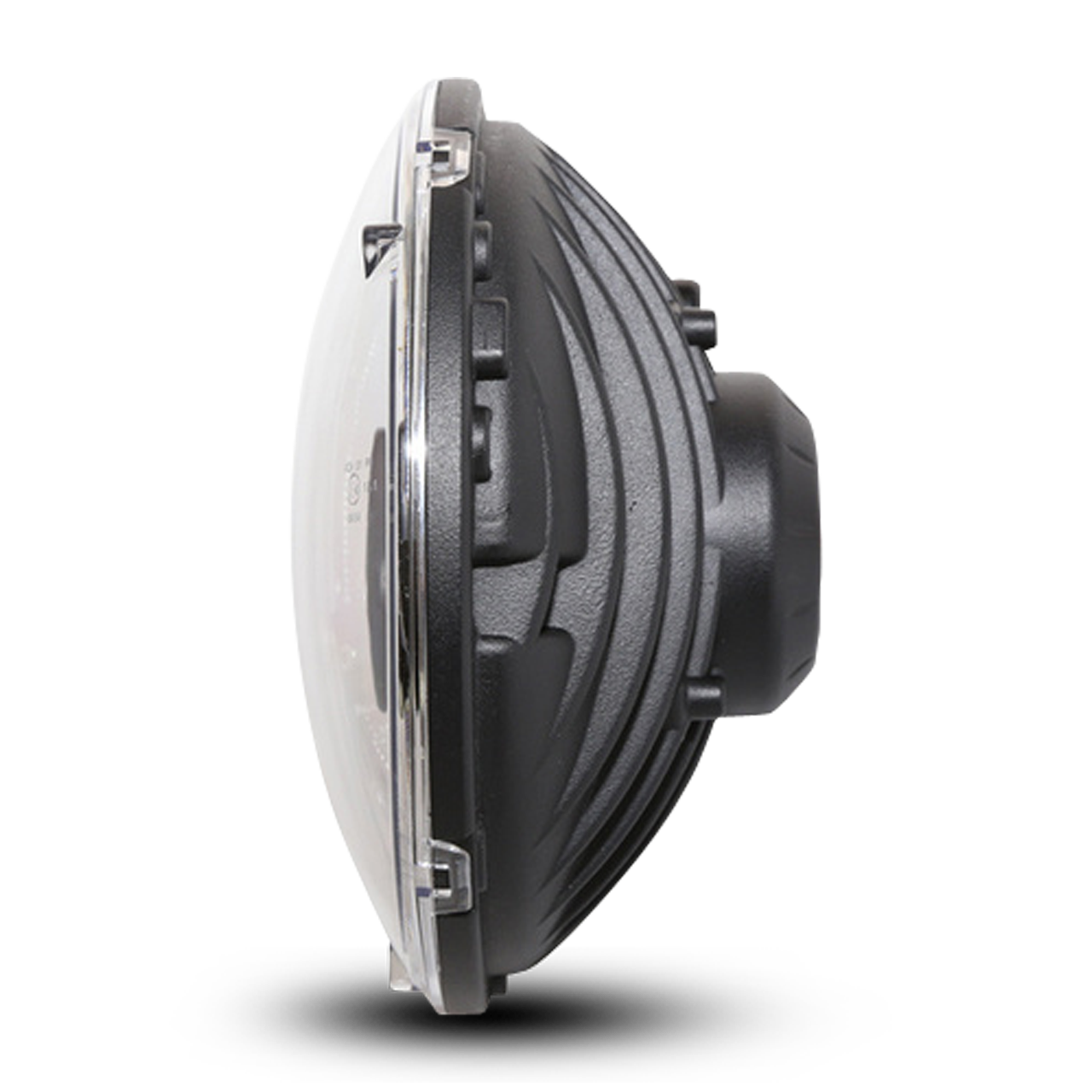

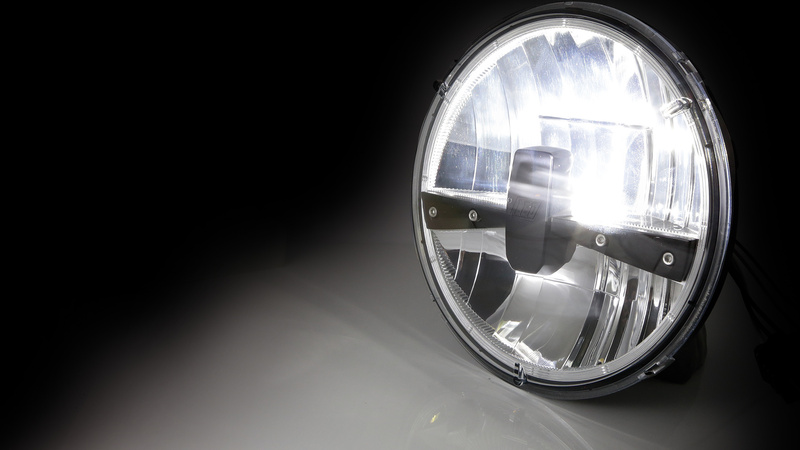

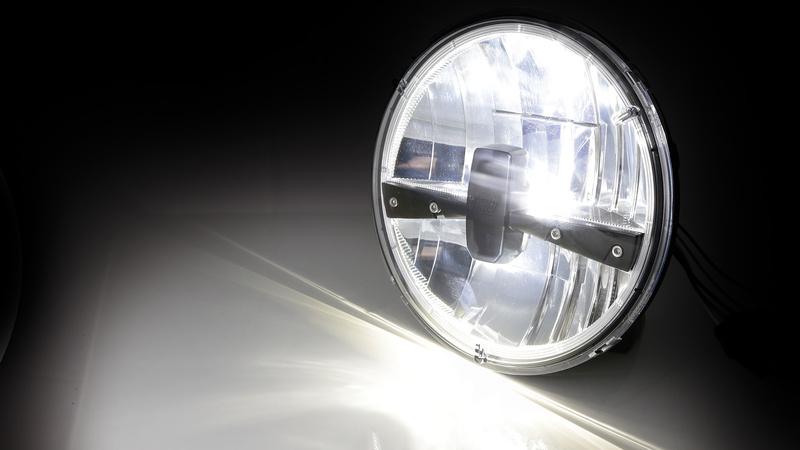

Highsider Headlight Insert Typ 3

HIGHSIDER Type 3 LED Headlight round Insert, high-beam, low-beam and parking light, E-marked.

This round, chrome-plated reflector with black or chrome-plated bezel has high beam, low beam and parking light functions and emits an asymmetrical luminous flux – only permitted for right-hand traffic, E-approved.

Dimensions:

Diameter A = 177 mm
Diameter GA = 168 mm
Diameter I = 160 mm
T = 61 mm
R = 10 mm

Connections:

Black cable = Ground (-)
Red cable = Low beam (+), Power consumption: at 12 Volt 18 Watt approx. 1132 Lumen.
White cable = high beam (+), power consumption: at 12 Volt 30 Watt approx. 1770 Lumen.
Brown cable = parking light (+), power consumption: at 12 Volt 0.7 Watt

Scope of supply:1 piece

Notes:

Application asymmetrical, approved for right-hand traffic only.
Complete spotlight Art.-No.1108616001 (223-146) and 1108615001 (223-148).
