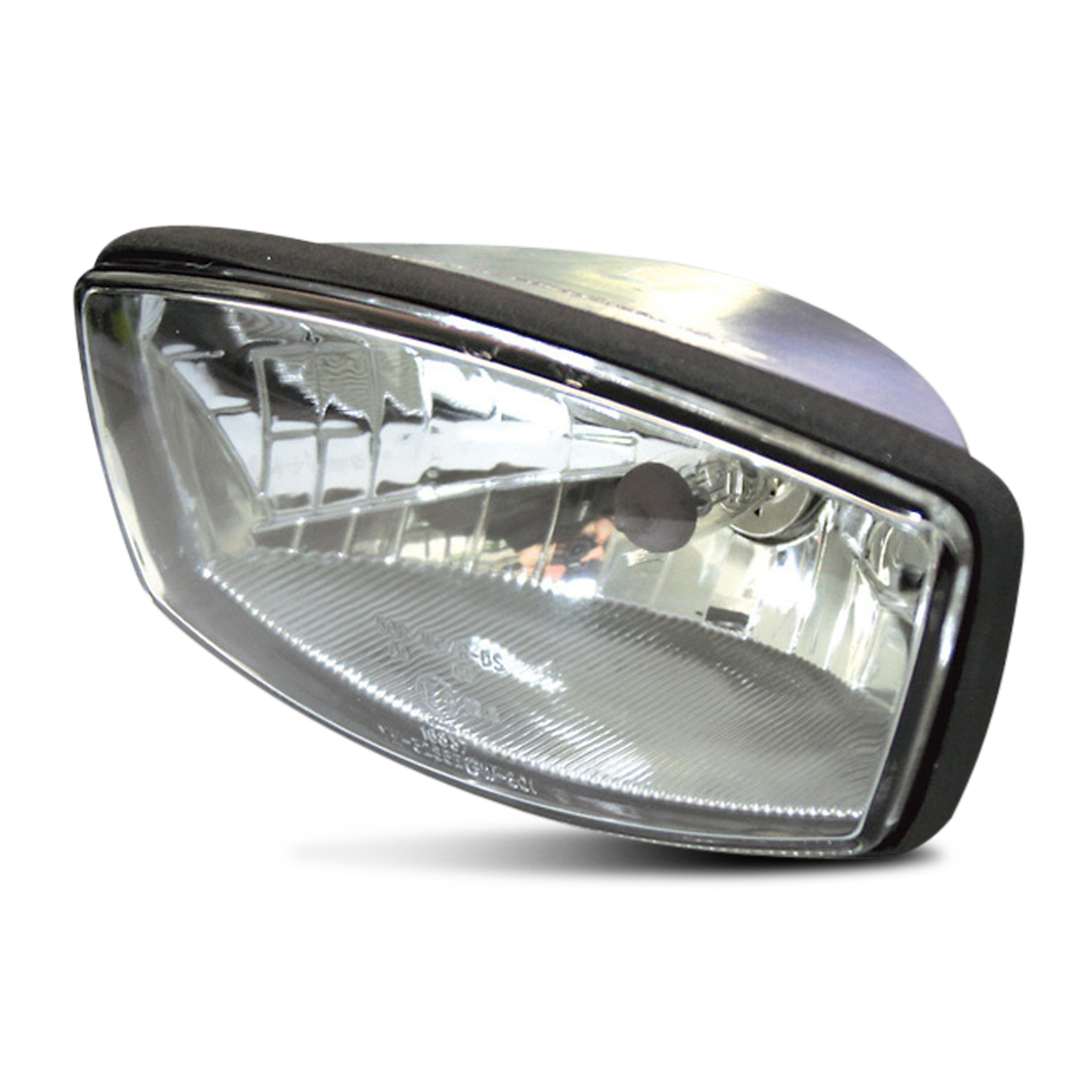

Highsider Headlight Insert Rectangular

Highsider H4 Insert with parking light function, 12 V 60/55W

Symmetrical insert with parking light and clear glass. The reflector creates a symmetrical, bright light and ensures optimal perception of bikers by other road users, e-approved.

Dimensions:
A: 180 x 90 mm.
GA: 172 x 85 mm
I: 165 x 80 mm
R: 10 mm
T: max. 90 mm (unequal depths on all sides, therefore only the deepest point measured above).

Lamps: H4, 12 V 60/55W

Connections:
Black cable = ground (-)
Yellow cable = low beam (+)
Blue cable = high beam (+)
Connections parking light function:
Black cable = ground (-)
Green cable = parking light (+)

Scope of supply: 1 piece

Notes:
Symmetrical reflector - also approved for left-hand traffic.
