Highsider Headlight Insert Jackson
Manufacturer ID: 226-016
Add your vehicle to ensure you get the right parts
Customer reviews (0)
0 out of 5
Based on 0 reviews
Description

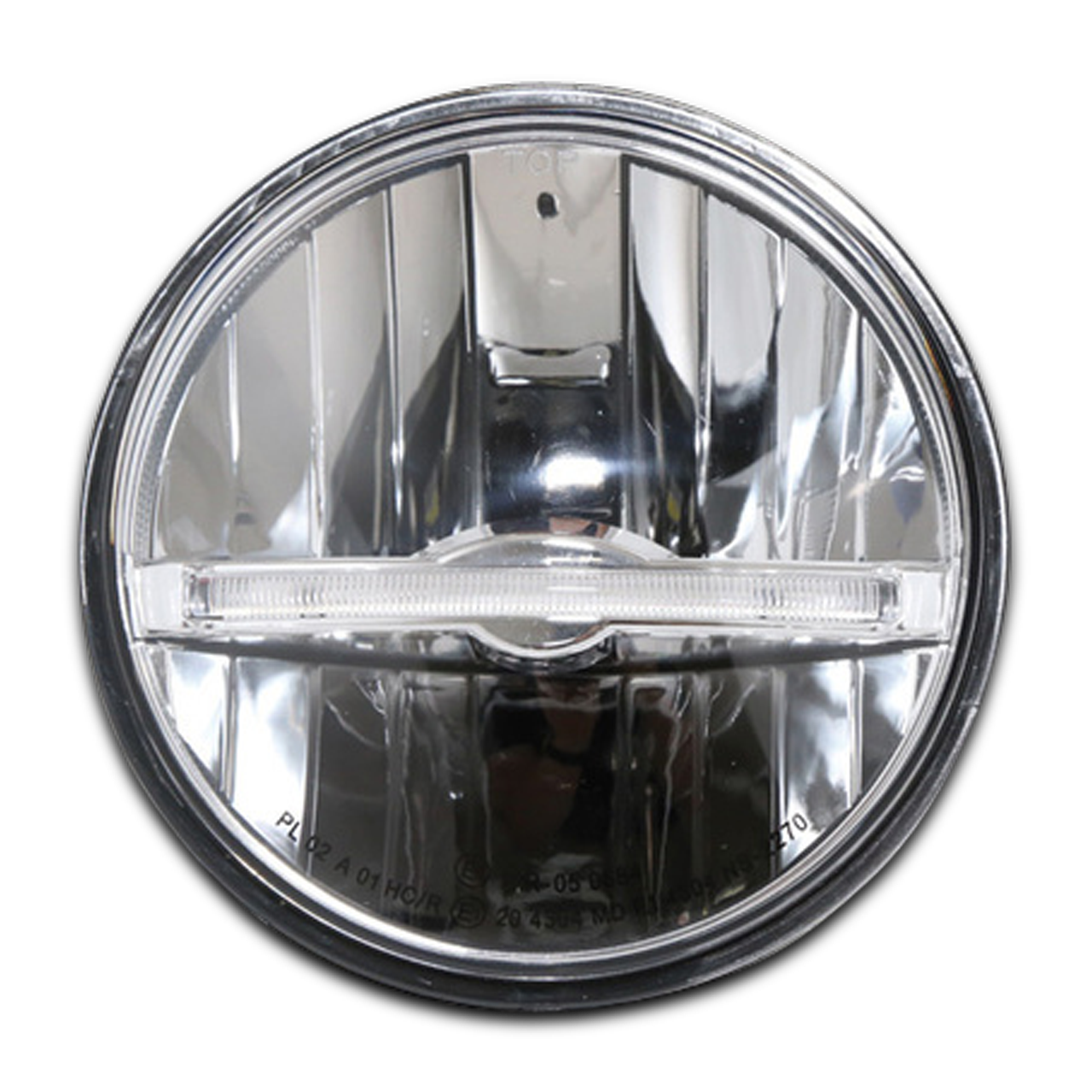

Highsider Jackson LED Main Headlamp Insert, 5 3/4"
This round, chrome-plated reflector features high beam, low beam, parking light and clear glass. The parking light function is shown in the middle of the insert as a light strip (Light Guide System). The reflector emits an asymmetrical luminous flux – only approved for right-hand traffic -and, E-tested.
Dimensions
Diameter A = 148 mm
Diameter GA = 134 mm
Diameter I = 128 mm T = 60 mm R = 11 mm
Technical Data Voltage: 12 V
Triple Plug Connectors Black = Ground (-) Blue = Low Beam (+) Red = High Beam (+) Separate Cable: Red = Parking light/parking light (+) Black = Mass (-)
Scope of supply: 1 piece
This round, chrome-plated reflector features high beam, low beam, parking light and clear glass. The parking light function is shown in the middle of the insert as a light strip (Light Guide System). The reflector emits an asymmetrical luminous flux – only approved for right-hand traffic -and, E-tested.
Dimensions
Diameter A = 148 mm
Diameter GA = 134 mm
Diameter I = 128 mm T = 60 mm R = 11 mm
Technical Data Voltage: 12 V
Triple Plug Connectors Black = Ground (-) Blue = Low Beam (+) Red = High Beam (+) Separate Cable: Red = Parking light/parking light (+) Black = Mass (-)
Scope of supply: 1 piece
Specifications
- Weight Packaging 699
- Length Packaging 218
- Manufacturers article number 226-016
- Height Packaging 132
- Placement Front
- Width Packaging 180
