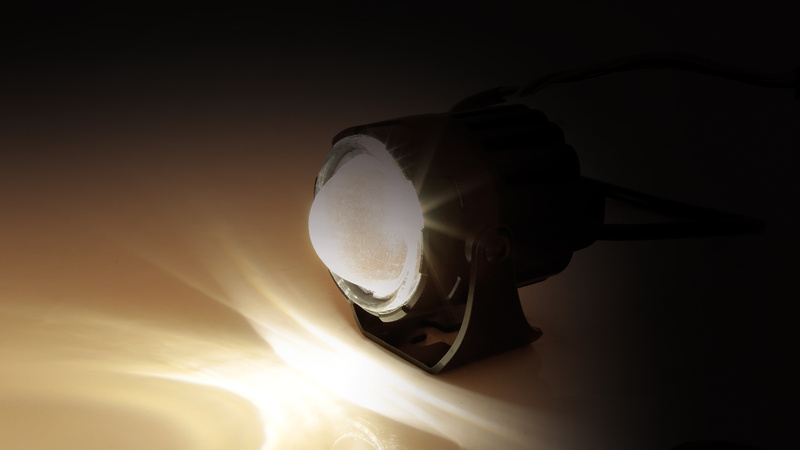

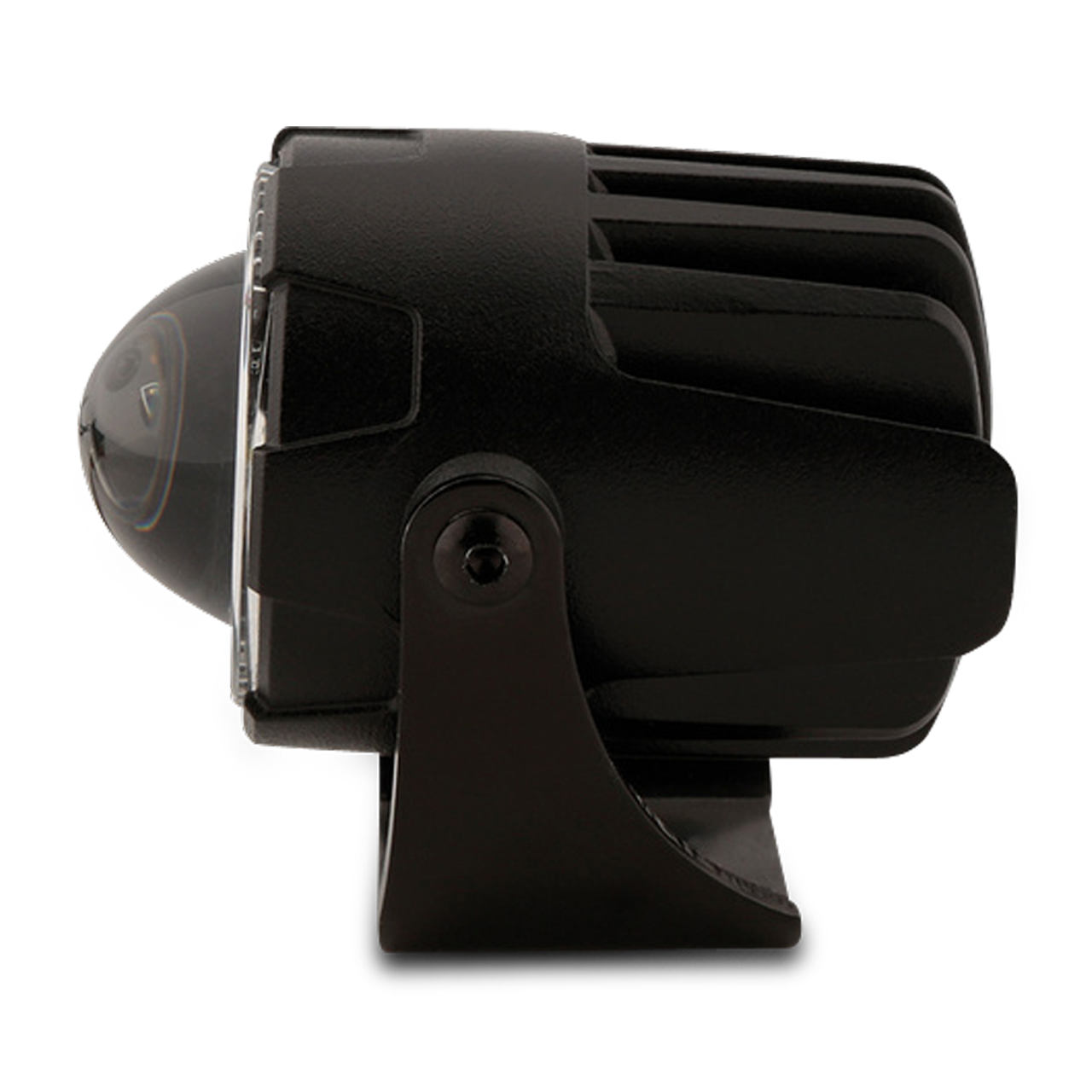

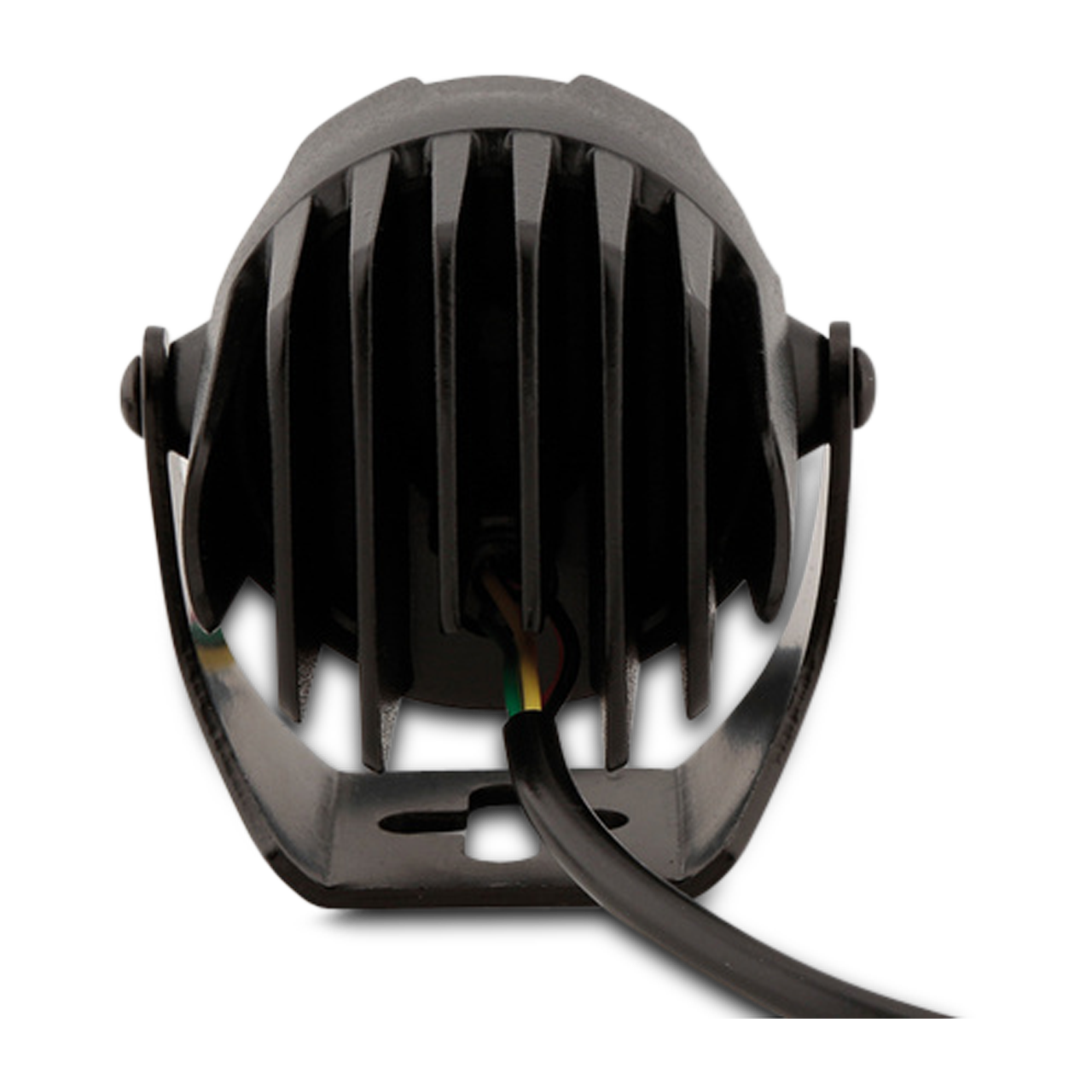

Highsider Ft13-High Headlight High Beam

FT13-High Spotlight HIGHSIDER with parking light, E-approved

Small LED spotlight solidly manufactured and with high light output. The FT13- HIGH is a powerful spotlight with a round lens. The matt black housing of the headlamp is made of high-quality aluminium and is equipped with a robust steel bracket.

The LED technology and the insert used produce a symmetrical, bright light for optimum perception. Together with the LED low beam headlight FT13- LOW (to be ordered separately) a real dream team. The result is impressive: Ideal for conversions of all kinds and STVO-compliant thanks to the test mark.

Dimensions:
Diameter: 55 mm
Diameter lens: 44 mm
Distance of the fixing holes: 55 mm
Fixing holes on the side: M4 Depth of the housing/from fixing point: 70 mm / 40 mm

Dimensions of the e-box:
Width: 53.3 mm
Depth: 33.5 mm
Height: 16.5 mm
Weight: 0.25 kg

material of housing: aluminium material of holder: Steel

Connections: Blue = High beam (+) Brown = Parking light (+) Green = Ground (-)

Supply: 1 piece, including mounting material

NOTES: – EMC ready– The headlight must never be connected without the supplied black electronic box for voltage control.
