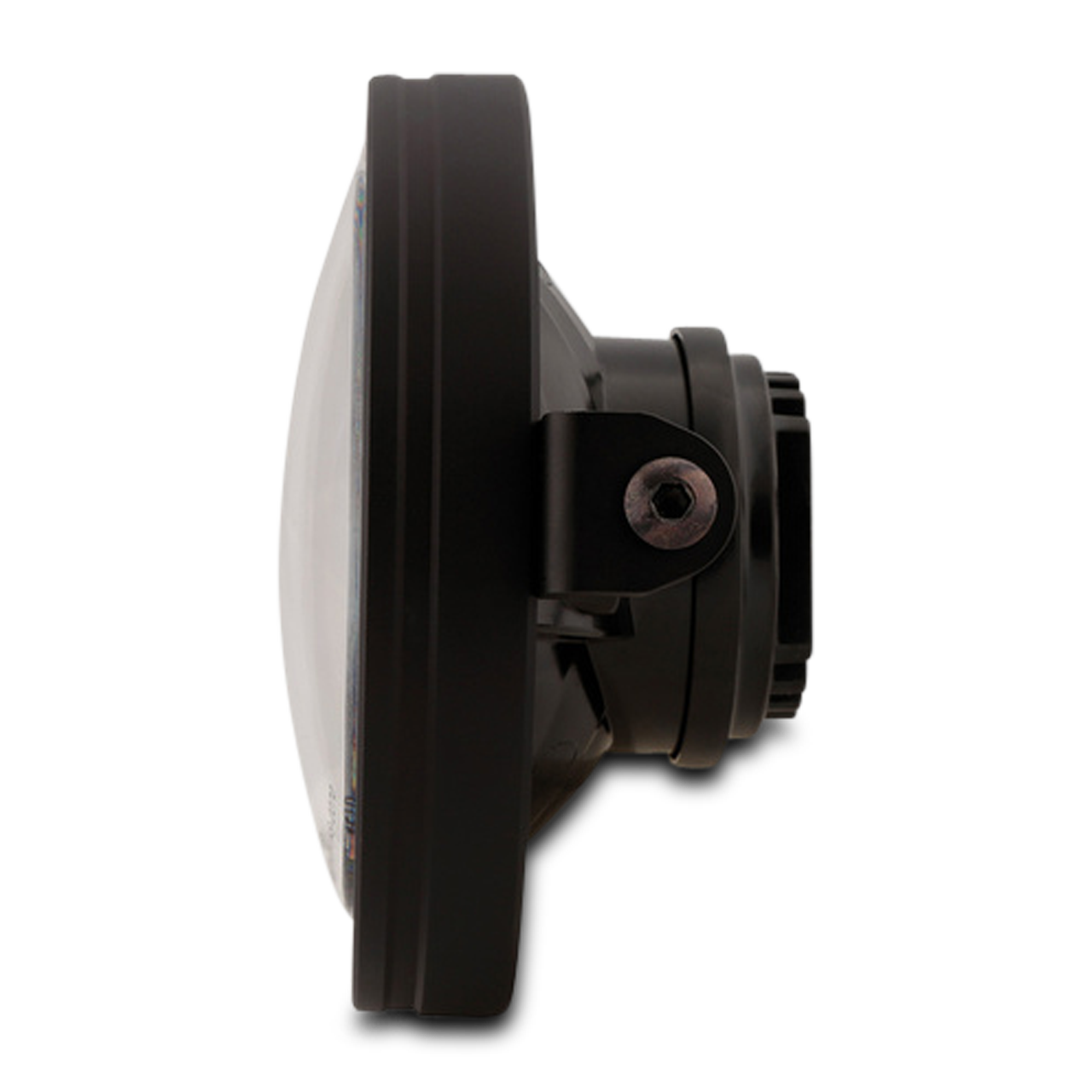

Highsider F-R2 Js M.H.Light

Highsider LED main headlight, FRAME-R2 Jackson, E-approved for right-hand traffic only.

Every centimetre counts to place the headlight as narrowly as possible between the two standpipes in the fork. With the puristic aluminium ring, it is possible to mount different LED headlight inserts free-standing on the motorcycle for the first time. The deliberate omission of a headlamp housing enables an unbeatably narrow installation position and provides better cooling of the LED unit.

In many motorcycles, the H4 or H7 lamp shines and more or less, sparkles. Seeing better usually also means being seen better at the same time. Whether you want to replace it for better visibility at night, better recognition during the day, or to give your motorcycle a more beautiful look, if you are looking for a stylish and innovative power headlight, the FRAME-R2 LED headlight is an excellent choice.

For variable mounting of the headlamp two different mounting systems are available.
•Side Mount, the conventional screw connection at the side of the lamp holder
•Bottom Mount, attachment at the bottom for screw connection to the fork bridge

The Side-Mount holders can be mounted in three positions, thus compensating for 32mm in installation depth and 46mm in width.

Features:
• Round 5 3/4-inch headlight with CNC holding ring and mounting kit
• Mounting WITHOUT a headlight housing
• Improves cooling
• Many installations possibilities
• Flat mounting
• Modern optics, Stylish and innovative
• Chrome Plated reflector with clear glass
• High beam, low beam (upper half shines) and parking light ring
• Asymmetrical luminous flux
• E-tested, nothing needs to be entered

Dimensions:
• Blue = low beam (+) at 12.5V, 1A, 13W, 1091 lumen
• Red = high beam (+) at 12.5V, 1A, 13W, 1868 lumen
• Black = ground (-)
• Separate cables:
• Red = parking light (+) at 12.5V, 0.1A, 1W
• Black = ground (-)

Connections/power consumption (3 pin connector):
• Red = Low beam (+)
• Yellow = High beam (+)
• White = Position light (+)
• Brown = Ground (-)

Supplied: 1 piece

Note: Asymmetrical use, approved for right-hand traffic only
