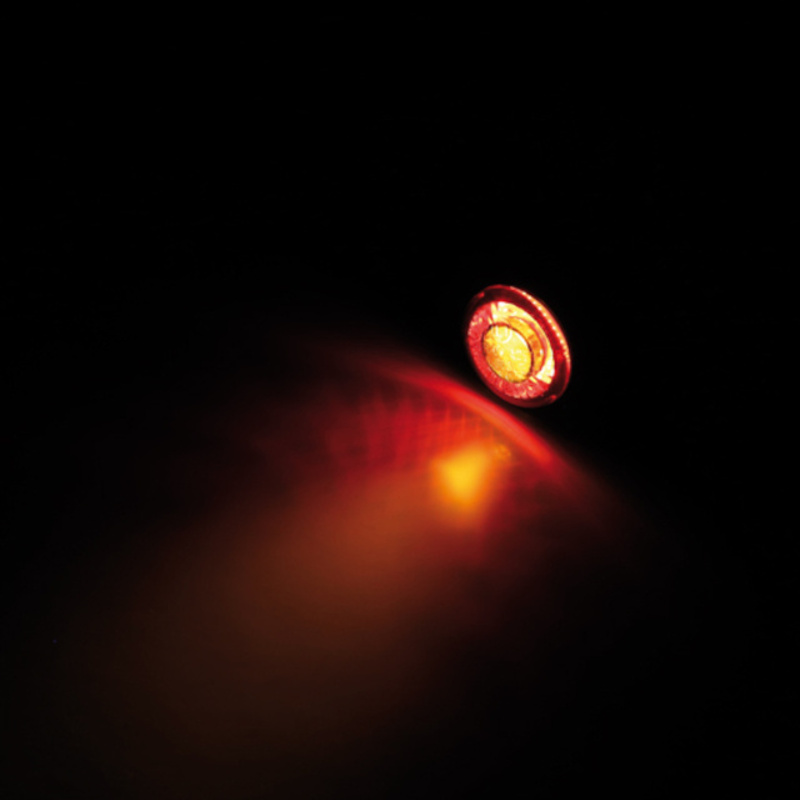

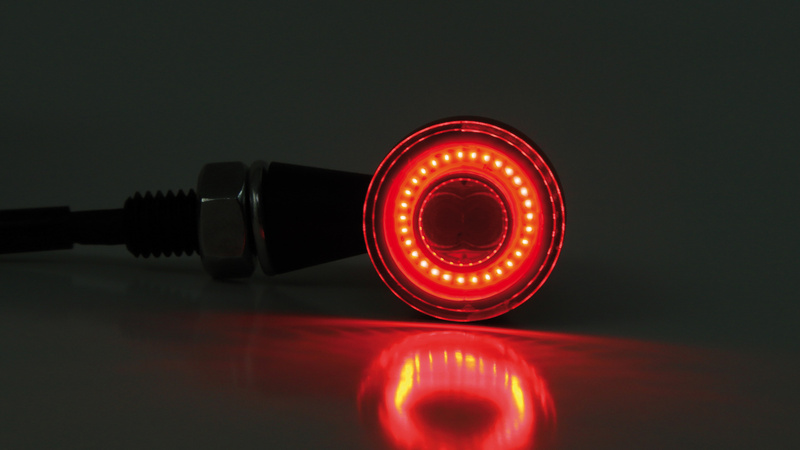

Highsider Apollo Classic Indicator 3IN1

HIGHSIDER Apollo Classic LED tail light, brake light, turn signal, aluminium housing, tinted glass, pair, E-approved.

With this innovative lighting technology, 2 very bright SMD LEDs are installed in the centre. The outer ring, on the other hand, consists of COBs (Chip On Board).

Thanks to the new LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently the best possible efficiency and service life. This also allows higher light values to be achieved than with conventional LEDs.

Dimensions:

A Diameter: 22 mm
B Width: 39 mm
C Depth: 21.5 mm
Stem length: 16 mm
Thread bolt: M8 x 1.25

Connections:

Black wire = ground (-)
Yellow wire = tail light (+)
Red wire = brake light (+)
Blue wire = turn signal (+)

Scope of supply:1 pair.
